Unable to edit the image columns header in proposal

Maintaining my Dolibarr
1

Greetings all,

I ma currently facing a issue with the image column header name, it makes my commercial propositions look unprofessional, i would just like to name it something or remove the line between the image column and the product name column.

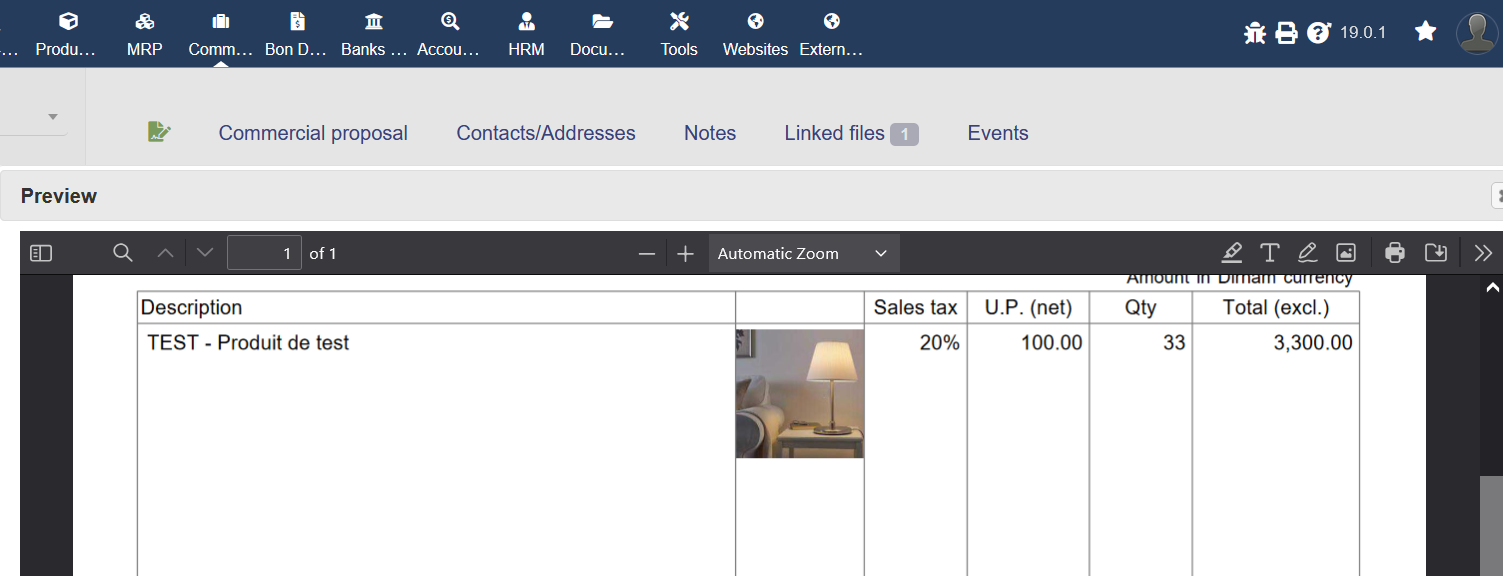

Screenshot 2024-08-01 193055
Screenshot 2024-08-01 1930551503×576 73.8 KB

2

if we could see the url of the page, then we could easier test it

3

Hi thanks for the reply with pleasure.

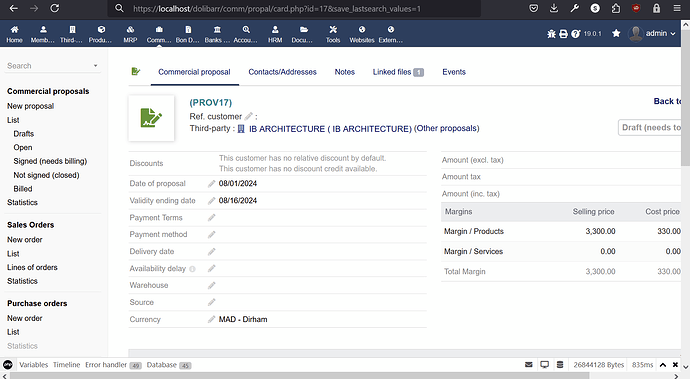

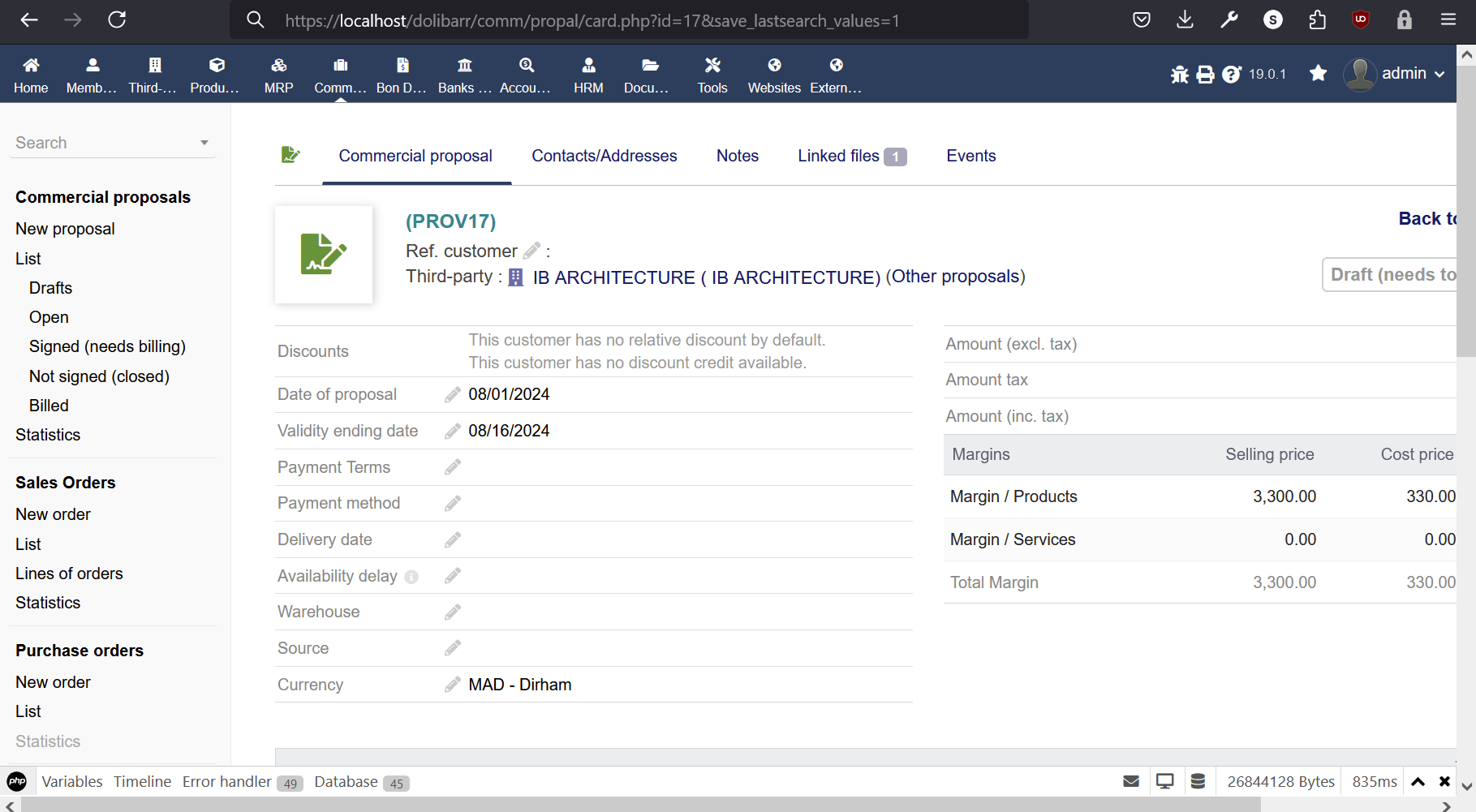

image1819×1001 130 KB

4

and which button did you click to get the other picture?

5

Hi @SAAD
Assuming that you use the default cyan template
You will have to edit htdocs/core/modules/propale/doc/pdf_cyan.modules.php
find public function defineColumnField and edit
from

		// Image of product
		$rank = $rank + 10;
		$this->cols['photo'] = array(
			'rank' => $rank,
			'width' => (!getDolGlobalString('MAIN_DOCUMENTS_WITH_PICTURE_WIDTH') ? 20 : $conf->global->MAIN_DOCUMENTS_WITH_PICTURE_WIDTH), // in mm
			'status' => false,
			'title' => array(
				'textkey' => 'Photo',
				'label' => ' '
			),
			'content' => array(
				'padding' => array(0, 0, 0, 0), // Like css 0 => top , 1 => right, 2 => bottom, 3 => left
			),
			'border-left' => false, // remove left line separator
		);

to


		// Image of product
		$rank = $rank + 10;
		$this->cols['photo'] = array(
			'rank' => $rank,
			'width' => (!getDolGlobalString('MAIN_DOCUMENTS_WITH_PICTURE_WIDTH') ? 22 : $conf->global->MAIN_DOCUMENTS_WITH_PICTURE_WIDTH), // in mm
			'status' => false,
			'title' => array(
				'textkey' => 'Photo',
				'label' => 'your title here'
			),
			'content' => array(
				'align' => 'C',
				'padding' => array(1, 1, 1, 1), // Like css 0 => top , 1 => right, 2 => bottom, 3 => left
			),
			'border-left' => false, // remove left line separator
		);

You have to remember and make these changes in every update though…

1 Like
6

Or submit a Pull Request at github?
